General Information

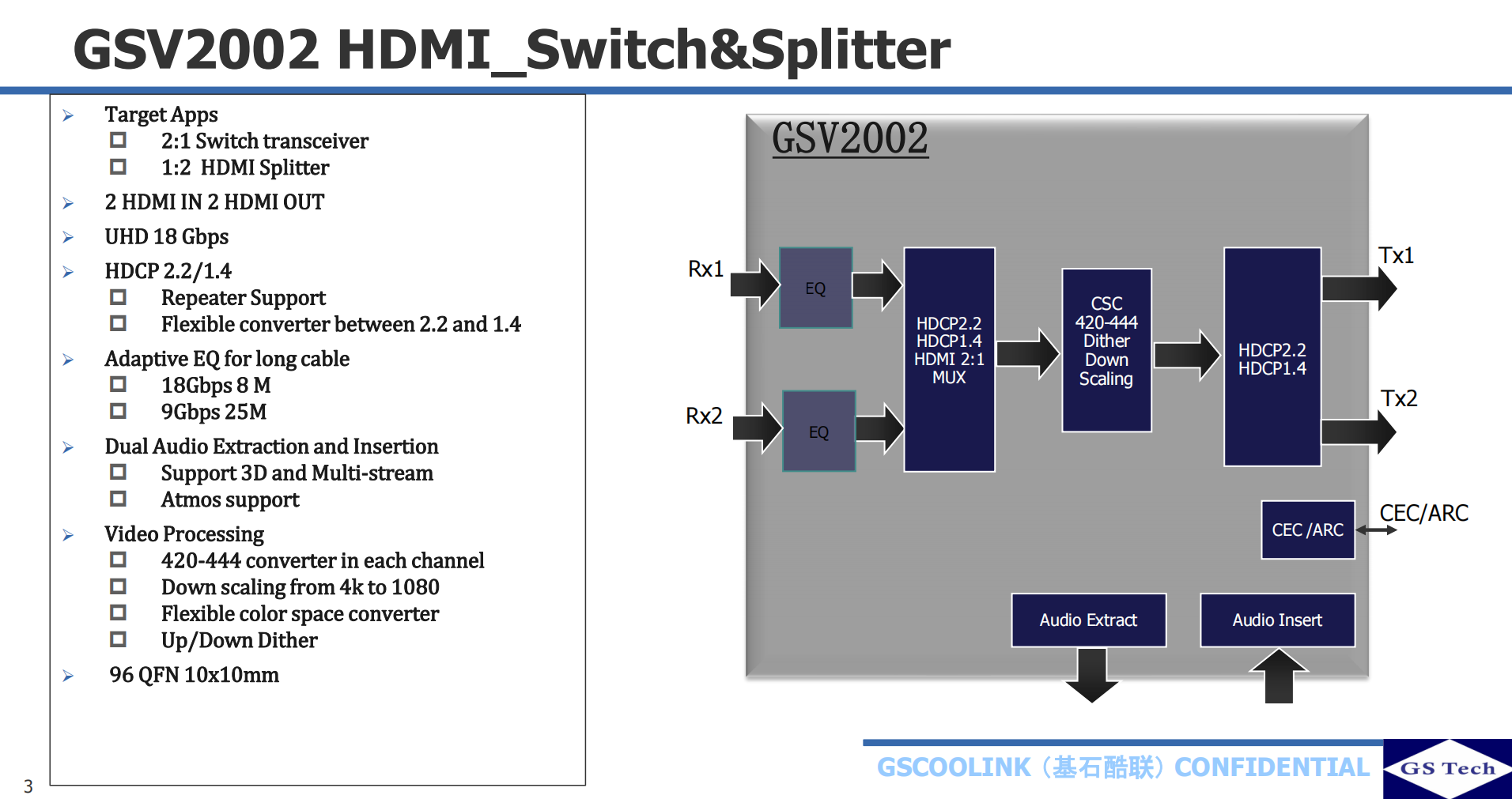

The GSV2002 is HDMI1.4/2.0 compatible,HDCP 1.4/2.2 supported,configurable 2-in-2-out repeater device.All 2 inputs are identical on receiver capability and all 2

outputs are identical on transmitter capability.GSV2002 is always in 1-in-2-out mode,the distributed video stream can be selected as either one of the 2 inputs.The HDMI input and output maximum processing pixel clock frequency is 600MHz which means the video resolution can support up to 4kx2k 60Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 192K Hz for non-compression timing.

GSV2002 supports HDR10 and Dolby Vision HDR as input and output.For audio insertion and extraction,the versatile TTL pin bus of GSV2002 can be configured as either input mode or output mode regarding platform requirement.

GSV2002 can support up to 8-channel I2S or 2-channel S/PDIF,3D and multi-stream audio.In TDM mode,each audio pin supports up to 8 channels.Internal Scaler and Color Space Converter enables the input and output to be timing format independent and capable of long distance transmission.With powerful HDMI Rx equalizer and Tx pre-emphasis capability,GSV2002 can cascade itself(or GSV2000 series chips)with at least 7 stages for all HDMI 1.3/1.4/2.0 timings.

GSV2002是HDMI2.0/HDCP2.2 2x2矩陣,支持DownScaler,CSC及音頻分離和音頻嵌入，支持ARC及CEC功能。GSV2002目標應用：矩陣，分配器切換器,條形音響，AVR等。

功能特征

1、適用于2to2切換分配器

2、UHD 18 Gbps

3、靈活的HDCP 2.2/1.4支持

4、雙路音頻的提取或嵌入

5、視頻處理

（1）每個通道的420-444轉換器。

（2）從4K降至1080

（3）靈活的彩色空間轉換器

（4）上下抖動

6、支持2路DVI/HDMI輸入

7、支持2路DVI/HDMI輸出

8、支持所有壓縮和非壓縮的音頻格式

9、HDMI輸入端具有自適應EQ

10、HDMI輸出端具有預加重功能

可應用及方案：

1、1:2分配器

2、2:1切換器

3、2X2切換分配器

4、Crosspoint矩陣HDCP2.2加解Key

5、GSV2002+VS010/VS100 18G CSC延長

6、Soundbar 1:1，2:1 repeater
