General Information

The GSV2008 is HDMI1.4/2.0 compatible,HDCP 1.4/2.2 supported,configurable 4-in-2-out repeater device.All 4 inputs are identical on receiver capability and all 2 outputs are identical on transmitter capability.GSV2008’s 2 HDMI outputs can be independently routed from any HDMI input port.

The HDMI input and output maximum processing pixel clock frequency is 600MHz which means the video resolution can support up to 4kx2k 60Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 192K Hz for non-compression timing.

GSV2008 supports HDR10 and Dolby Vision HDR as input and output.For audio insertion and extraction,2 versatile TTL pin buses of GSV2008 can be configured as either input mode or output mode regarding platform requirement.

GSV2008 can support up to 8-channel I2S,2-channel S/PDIF,3D and multi-stream audio.In TDM mode,each audio pin supports up to 8 channels.Internal Scaler and Color Space Converter enables the input and output to be timing format independent and capable of long distance transmission.With powerful HDMI Rx equalizer and Tx pre-emphasis capability,GSV2008 can cascade itself(or GSV2000 series chips)with at least 7 stages for all HDMI 1.3/1.4/2.0 timings.

GSV2008是HDMI2.0/HDCP2.2 4x2矩陣,支持DownScaler,CSC及音頻分離和音頻嵌入，支持ARC及CEC功能。

目標應用：HDMI2.0矩陣，開關，條形音響，AVR等。

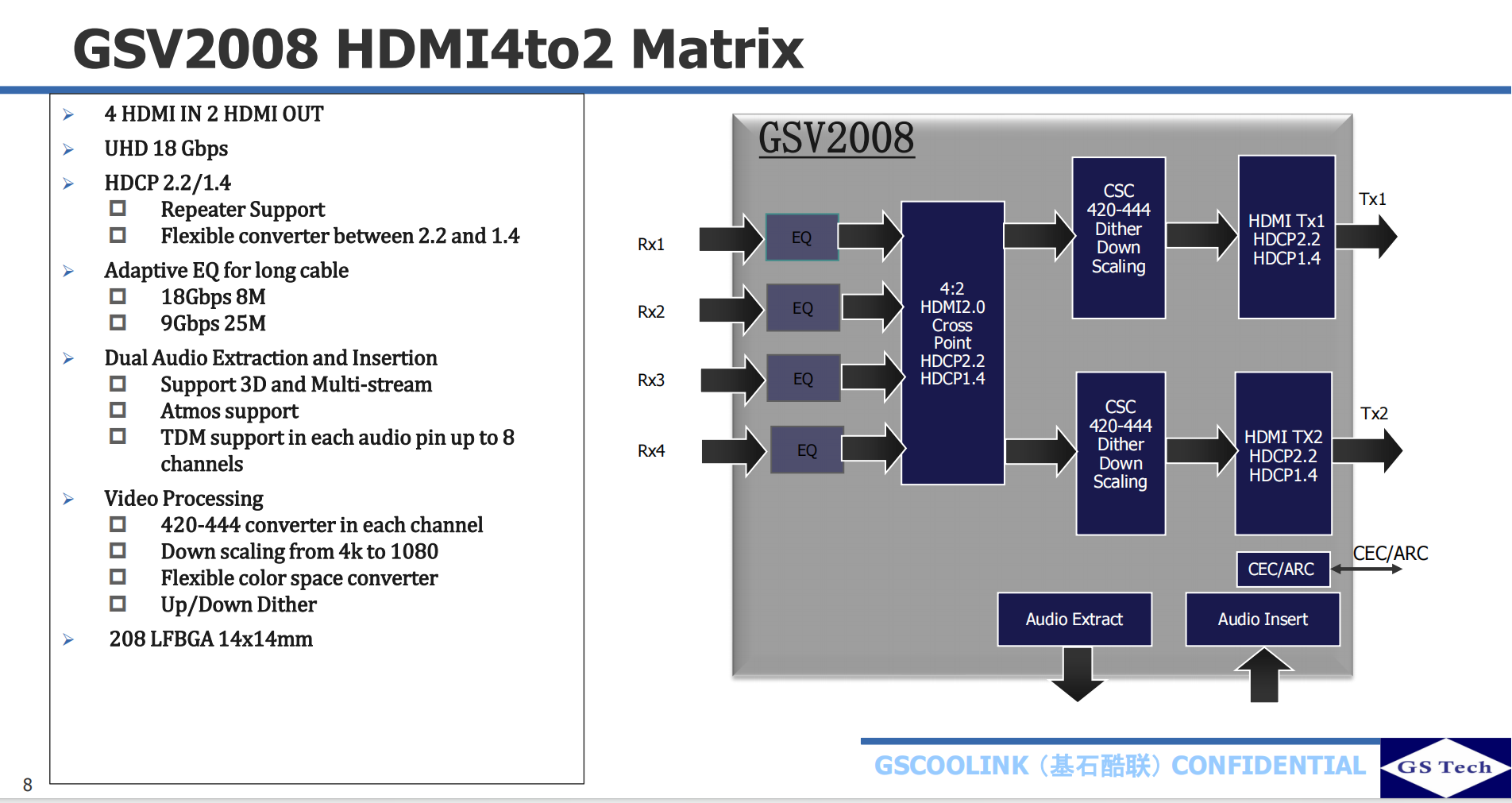

功能特征

1、4 HDMI IN 2 HDMI OUT

2、UHD 18 Gbps

3、靈活的HDCP 2.2/1.4支持

4、雙路音頻的提取或嵌入

5、視頻處理

（1）每個通道的420-444轉換器。

（2）從4K降至1080

（3）靈活的彩色空間轉換器

（4）上下抖動

6、HDMI輸入端具有自適應EQ

7、HDMI輸出端具有預加重功能

8、集成HDCP KEY RAM

9、集成512K字節的EDID RAM

10、支持I2S和SPDIF輸出/輸入

可應用及方案：

1.4X2矩陣

2.4X4矩陣(GSV2006*2+GSV2008*2+MCU)
